import xarray as xr
import xgcm
import numpy as np
import xroms
import matplotlib.pyplot as plt
Matplotlib is building the font cache; this may take a moment.
How to calculate with xarray
and xroms
#
Here we demonstrate a number of calculations built into xroms
, through accessors to DataArrays
and Datasets
.
xarray
Datasets#
Use an xarray
accessor in xroms
to easily perform calculations with syntax
ds.xroms.[method]
Importantly, the xroms
accessor to a Dataset
is initialized with an xgcm
grid object (or you can input a previously-calculated grid object), stored at ds.xroms.xgrid
, which is used to perform the basic grid calculations. More on this under “How to set up grid” below.
The built-in native calculations are properties of the xroms
accessor and are not functions.
The accessor functions can take in the horizontal then vertical grid label you want the calculation to be on as options:
ds.xroms.ddz('u', hcoord='rho', scoord='s_rho') # to make sure result is on rho horizontal grid and s_rho vertical grid, a function
or
ds.xroms.dudz # return on native grid it is calculated on, a property
Other inputs are available for functions when the calculation involves a derivative and there is a choice for how to treat the boundary (hboundary
and hfill_value
for horizontal calculations and sboundary
and sfill_value
for vertical calculations). More information on those inputs can be found in the docs for xgcm
such as under found under:
ds.xroms.xgrid.interp?
xarray
DataArrays#
A few of the more basic methods in xroms
are available to DataArrays
too. xroms
methods for DataArrays
require the grid object to be input:
ds.temp.xroms.to_grid(xgrid, hcoord='psi', scoord='s_w')
Attributes#
xroms
provides attributes as metadata to track calculations, provide context, and to be used as indicators for plots.
The option to always keep attributes in xarray
is turned on in the call to xroms
.
cf-xarray
#
Some functionality is added by using the package cf-xarray
. Necessary attributes are added to datasets when the following call is run:
ds, xgrid = xroms.roms_dataset(ds)
For example, when all CF Convention attributes are available in the Dataset, you can refer to dimensions and coordinates generically, regardless of the actual variable names.
For dimensions:
ds.cf[“T”], ds.cf[“Z”], ds.cf[“Y”], ds.cf[“X”]
For coordinates:
ds.cf[“time], ds.cf[“vertical”], ds.cf[“latitude”], ds.cf[“longitude”]
Load in data#
More information on input/output in input/output page. For model output available at
ds = xr.open_dataset(url, chunks={})
Also, an example ROMS dataset is available with xroms
that we will read in for this tutorial.
ds = xroms.datasets.fetch_ROMS_example_full_grid()
ds
Downloading file 'ROMS_example_full_grid.nc' from 'https://github.com/xoceanmodel/xroms/raw/main/xroms/data/ROMS_example_full_grid.nc' to '/home/docs/.cache/xroms'.
<xarray.Dataset> Size: 62MB Dimensions: (eta_rho: 191, xi_rho: 300, s_rho: 30, s_w: 31, ocean_time: 2, eta_u: 191, xi_u: 299, eta_v: 190, xi_v: 300) Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... lon_u (eta_u, xi_u) float64 457kB dask.array<chunksize=(191, 299), meta=np.ndarray> lat_u (eta_u, xi_u) float64 457kB dask.array<chunksize=(191, 299), meta=np.ndarray> lon_v (eta_v, xi_v) float64 456kB dask.array<chunksize=(190, 300), meta=np.ndarray> lat_v (eta_v, xi_v) float64 456kB dask.array<chunksize=(190, 300), meta=np.ndarray> Dimensions without coordinates: eta_rho, xi_rho, eta_u, xi_u, eta_v, xi_v Data variables: (12/17) angle (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> hc float64 8B ... Cs_r (s_rho) float64 240B dask.array<chunksize=(30,), meta=np.ndarray> zeta (ocean_time, eta_rho, xi_rho) float32 458kB dask.array<chunksize=(2, 191, 300), meta=np.ndarray> h (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> Cs_w (s_w) float64 248B dask.array<chunksize=(31,), meta=np.ndarray> ... ... temp (ocean_time, s_rho, eta_rho, xi_rho) float32 14MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> salt (ocean_time, s_rho, eta_rho, xi_rho) float32 14MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Vtransform int32 4B ... pm (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> pn (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> f (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> Attributes: (12/29) file: ocean_his_0150.nc format: netCDF-3 classic file Conventions: CF-1.4 type: ROMS/TOMS history file title: Texas and Louisiana Shelf case (Nesting) rst_file: ocean_rst.nc ... ... compiler_command: /g/software/openmpi/1.4.3/intel/bin/mpif90 compiler_flags: -heap-arrays -fp-model precise -assume 2underscores -c... tiling: 016x032 history: ROMS/TOMS, Version 3.4, Sunday - December 4, 2011 - 7... ana_file: /scratch/zhangxq/projects/txla_nesting6/Functionals/an... CPP_options: TXLA, ANA_BSFLUX, ANA_BTFLUX, ASSUMED_SHAPE, BULK_FLUX...
ds, xgrid = xroms.roms_dataset(ds, include_cell_volume=True)
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
# add grid to xrom accessor explicitly
ds.xroms.set_grid(xgrid)
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
ds.xroms.xgrid
<xgcm.Grid>
X Axis (not periodic, boundary=None):
* center xi_rho --> inner
* inner xi_u --> center
Y Axis (not periodic, boundary=None):
* center eta_rho --> inner
* inner eta_v --> center
Z Axis (not periodic, boundary=None):
* center s_rho --> outer
* outer s_w --> center
xgcm
grid and extra ROMS coordinates#
How to set up grid#
The package xcgm
has many nice grid functions for ROMS users, however, a bit of set up is required to connect from ROMS to the xgcm
standardds. This grid set up does that.
The grid
object contains metrics (X, Y, Z) with distances for each grid (‘dx’, ‘dx_u’, ‘dx_v’, ‘dx_psi’, and ‘dz’, ‘dz_u’, ‘dz_v’, ‘dz_w’, ‘dz_w_u’, ‘dz_w_v’, ‘dz_psi’, ‘dz_w_psi’), and all of these as grid coordinates too.
After setting up your Dataset, you should add coordinates and other information to the dataset and set up an xgcm
grid object with:
ds, xgrid = xroms.roms_dataset(ds, include_cell_volume=True)
If you want to use the xroms
accessor, add the grid object explicitly with:
ds.xroms.set_grid(xgrid)
If you don’t do this step, the first time the grid object is required it will be set up, though you can’t choose which input flags to use in that case.
The xgcm grid object is then available at
ds.xroms.xgrid
Grid lengths#
Distances between grid nodes on every ROMS grid can be calculated and set up in the xgcm
grid object — some by default and some have to be requested by the user with optional flags.
Horizontal grids:
inverse distances between nodes are given in an analogous way to distance (i.e.,
ds.pm
andds.pn_psi
)distances between nodes are given in meters by dx’s and dy’s stored in ds, such as:
ds.dx
for therho
grid andds.dy_psi
for thepsi
grid, calculated from inverse distancesVertical grids:
There are lazily-evaluated z-coordinates for both
rho
andw
vertical grids for each horizontal grid.There are also arrays of z distances between nodes, called dz’s, available for each combination of grids. For example, there is
ds.dz_u
for z distances on theu
horizontal andrho
vertical grid, and there isds.dz_w_v
for z distances on thev
horizontal andw
vertical grid. These are[ocean_time x s_* x eta_* x xi_*]
arrays.Arrays of z distances relative to a sea level of 0 are also available. They have analogous names to the previous entries but with “0” on the end. They are computationally faster to use because they do not vary in time. They are also less accurate for this reason but it depends on your use as to how much that matters.
Grid areas#
Horizontal
rho grid
ds.dA
, psi gridds.dA_psi
, u gridds.dA_u
, v gridds.dA_v
Vertical
These aren’t built in but can easily be calculated. For example, for cell areas in the x direction on the rho horizontal and rho vertical grids:
ds.dx * ds.dz
.
Grid volumes#
Time varying: All 8 combinations of 4 horizontal grids and 2 vertical grids are available if include_cell_volume==True
in roms_dataset()
, such as: ds.dV
(rho horizontal, rho vertical), and ds.dV_w_v
(w vertical, v horizontal).
A user can easily calculate the same but for time-constant dz’s, for example as:
ds['dV_w'] = ds.dx * ds.dy * ds.dz_w0 # w vertical, rho horizontal, constant in time
You can calculate the full domain volume in time with:
ds.dV.sum(('s_rho', 'eta_rho', 'xi_rho'))
Or, using cf-xarray
with:
ds.dV.cf.sum(('Z', 'Y', 'X'))
ds.dV.cf.sum(('Z', 'Y', 'X')) # with cf-xarray accessor
<xarray.DataArray 'dV' (ocean_time: 2)> Size: 16B dask.array<sum-aggregate, shape=(2,), dtype=float64, chunksize=(2,), chunktype=numpy.ndarray> Coordinates: * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... Attributes: long_name: volume metric in XI and ETA and S on RHO/RHO grids units: meter3 field: dV, scalar
Change grids#
A ROMS user frequently needs to move between horizontal and vertical grids, so it is built into many of the function wrappers, but you can also do it as a separate function. It can also be done directly to Datasets
with the xroms
accessor. Here we change salinity from its default grids to be on the psi grid horizontally and the s_w grid vertically:
ds.xroms.to_grid('salt', 'psi', 's_w')
You can also use the xroms
function directly instead of using the xarray
accessor if you prefer to have more options. Here is the equivalent call to the accessor, using the same defaults:
xroms.to_grid(ds["salt"], xgrid,
hcoord="psi", scoord="s_w",
hboundary="extend", hfill_value=None,
sboundary="extend", sfill_value=None)
ds.xroms.to_grid('salt', 'psi', 's_w')
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'salt' (ocean_time: 2, s_w: 31, eta_v: 190, xi_u: 299)> Size: 14MB dask.array<transpose, shape=(2, 31, 190, 299), dtype=float32, chunksize=(2, 31, 190, 299), chunktype=numpy.ndarray> Coordinates: * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_u (xi_u) int64 2kB 0 1 2 3 4 5 6 7 ... 292 293 294 295 296 297 298 * eta_v (eta_v) int64 2kB 0 1 2 3 4 5 6 ... 183 184 185 186 187 188 189 z_w_psi (ocean_time, s_w, eta_v, xi_u) float64 28MB dask.array<chunksize=(2, 31, 190, 299), meta=np.ndarray> Attributes: long_name: salinity time: ocean_time field: salinity, scalar, series name: salt units: units
Dimension ordering convention#
By convention, ROMS DataArrays should be in the order [‘T’, ‘Z’, ‘Y’, ‘X’], for however many of these dimensions they contain. The following function does this for you:
xroms.order(ds.temp); # function call
ds.temp.xroms.order(); # accessor
ds.temp.xroms.order() # accessor
<xarray.DataArray 'temp' (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 14MB dask.array<open_dataset-temp, shape=(2, 30, 191, 300), dtype=float32, chunksize=(2, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Attributes: long_name: potential temperature units: Celsius time: ocean_time field: temperature, scalar, series
Basic computations#
These are all functions, not properties.
xarray
#
Many computations are built into xarray
itself. Often it is possible to input the dimension over which to perform a computation by name, such as:
arr.sum(dim="xi_rho")
or
arr.sum(dim=("xi_rho","eta_rho"))
Note that many basic xarray
calculations should be used with caution when using with ROMS output, since a ROMS grid can be stretched both horizontally and vertically. When using these functions, consider if your calculation should account for variable grid cell distances, areas, or volumes. Additionally, it is straight-forward to use basic grid functions from xarray
on a ROMS time dimension (resampling, differentiation, interpolation, etc), however, be careful before using these functions on spatial dimensions for the same reasons as before.
ds.salt.mean(dim=("xi_rho","eta_rho"))
# same call but using cf-xarray
ds.salt.cf.mean(("Y","X"))
ds.salt.cf.mean(("Y","X"))
<xarray.DataArray 'salt' (ocean_time: 2, s_rho: 30)> Size: 240B dask.array<mean_agg-aggregate, shape=(2, 30), dtype=float32, chunksize=(2, 30), chunktype=numpy.ndarray> Coordinates: * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... Attributes: long_name: salinity time: ocean_time field: salinity, scalar, series
xroms
grid-based metrics#
Spatial metrics that account for the variable grid cell sizing in ROMS (both curvilinear horizontal and s vertical) are available by wrapping xgcm
functions. These also have the additional benefit that the user can change grids and attributes are tracked. The available functions are:
gridsum
gridmean
Example usage:
xroms.gridsum(ds.temp, xgrid, dim) # function call
ds['temp'].xroms.gridsum(xgrid, dim) # accessor
where dimension names in the xgcm
convention are ‘Z’, ‘Y’, or ‘X’. dim
can be a string, list, or tuple of combinations of these names for dimensions to average over.
sum#
uint = ds.u.xroms.gridsum(xgrid, "Z")
uint.xroms.gridsum(xgrid, 'Y')
<xarray.DataArray (ocean_time: 2, xi_u: 299)> Size: 5kB dask.array<sum-aggregate, shape=(2, 299), dtype=float64, chunksize=(2, 299), chunktype=numpy.ndarray> Coordinates: * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_u (xi_u) int64 2kB 0 1 2 3 4 5 6 7 ... 292 293 294 295 296 297 298 Attributes: long_name: u-momentum component units: meter second-1 time: ocean_time field: u-velocity, scalar, series
mean#
vint = ds.v.xroms.gridmean(xgrid, "Z")
vint.xroms.gridmean(xgrid, "Y")
<xarray.DataArray 'v' (ocean_time: 2, xi_rho: 300)> Size: 5kB dask.array<truediv, shape=(2, 300), dtype=float64, chunksize=(2, 300), chunktype=numpy.ndarray> Coordinates: * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 Attributes: long_name: v-momentum component units: meter second-1 time: ocean_time field: v-velocity, scalar, series
Derivatives#
Vertical#
Syntax is:
ds.xroms.ddz("salt") # accessor to dataset
xroms.ddz(ds.salt, xgrid) # No accessor
Other options:
ds.xroms.ddz('salt', hcoord='psi', scoord='s_rho', sboundary='extend', sfill_value=np.nan); # Dataset
xroms.ddz(ds.salt, xgrid, hcoord='psi', scoord='s_rho', sboundary='extend', sfill_value=np.nan); # No accessor
ds.xroms.ddz('salt') # Dataset
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'dsaltdz' (ocean_time: 2, s_w: 31, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<truediv, shape=(2, 31, 191, 300), dtype=float64, chunksize=(2, 31, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_w (ocean_time, s_w, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 31, 191, 300), meta=np.ndarray> Attributes: long_name: vertical derivative of salinity time: ocean_time field: salinity, scalar, series name: dsaltdz units: 1/m * units
Horizontal#
Syntax:
ds.xroms.ddxi('u'); # horizontal xi-direction gradient (accessor)
ds.xroms.ddeta('u'); # horizontal eta-direction gradient (accessor)
dtempdxi, dtempdeta = xroms.hgrad(ds.temp, xgrid) # both gradients simultaneously, as function
xroms.ddxi(ds.temp, xgrid) # individual derivative, as function
xroms.ddeta(ds.temp, xgrid) # individual derivative, as function
ds.xroms.ddxi('u') # horizontal xi-direction gradient
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'dudxi' (ocean_time: 2, s_w: 31, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<sub, shape=(2, 31, 191, 300), dtype=float64, chunksize=(2, 31, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_w (ocean_time, s_w, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 31, 191, 300), meta=np.ndarray> Attributes: long_name: horizontal xi derivative of u-momentum component units: 1/m * meter second-1 time: ocean_time field: u-velocity, scalar, series name: dudxi
Time#
Use xarray
directly for this.
ddt = ds.differentiate('ocean_time', datetime_unit='s')
ddt
<xarray.Dataset> Size: 734MB Dimensions: (eta_rho: 191, xi_rho: 300, s_rho: 30, s_w: 31, ocean_time: 2, xi_u: 299, eta_v: 190) Coordinates: (12/21) lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... lon_u (eta_rho, xi_u) float64 457kB dask.array<chunksize=(191, 299), meta=np.ndarray> ... ... z_w_v (ocean_time, s_w, eta_v, xi_rho) float64 28MB dask.array<chunksize=(2, 31, 190, 300), meta=np.ndarray> z_w_psi (ocean_time, s_w, eta_v, xi_u) float64 28MB dask.array<chunksize=(2, 31, 190, 299), meta=np.ndarray> z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> z_rho_u (ocean_time, s_rho, eta_rho, xi_u) float64 27MB dask.array<chunksize=(2, 30, 191, 299), meta=np.ndarray> z_rho_v (ocean_time, s_rho, eta_v, xi_rho) float64 27MB dask.array<chunksize=(2, 30, 190, 300), meta=np.ndarray> z_rho_psi (ocean_time, s_rho, eta_v, xi_u) float64 27MB dask.array<chunksize=(2, 30, 190, 299), meta=np.ndarray> Data variables: (12/45) angle (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> hc float64 8B ... Cs_r (s_rho) float64 240B dask.array<chunksize=(30,), meta=np.ndarray> zeta (ocean_time, eta_rho, xi_rho) float32 458kB dask.array<chunksize=(2, 191, 300), meta=np.ndarray> h (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> Cs_w (s_w) float64 248B dask.array<chunksize=(31,), meta=np.ndarray> ... ... dV_w_u (ocean_time, s_w, eta_rho, xi_u) float64 28MB dask.array<chunksize=(2, 31, 191, 299), meta=np.ndarray> dV_v (ocean_time, s_rho, eta_v, xi_rho) float64 27MB dask.array<chunksize=(2, 30, 190, 300), meta=np.ndarray> dV_w_v (ocean_time, s_w, eta_v, xi_rho) float64 28MB dask.array<chunksize=(2, 31, 190, 300), meta=np.ndarray> dV_psi (ocean_time, s_rho, eta_v, xi_u) float64 27MB dask.array<chunksize=(2, 30, 190, 299), meta=np.ndarray> dV_w_psi (ocean_time, s_w, eta_v, xi_u) float64 28MB dask.array<chunksize=(2, 31, 190, 299), meta=np.ndarray> rho0 int64 8B 1025 Attributes: (12/29) file: ocean_his_0150.nc format: netCDF-3 classic file Conventions: CF-1.4 type: ROMS/TOMS history file title: Texas and Louisiana Shelf case (Nesting) rst_file: ocean_rst.nc ... ... compiler_command: /g/software/openmpi/1.4.3/intel/bin/mpif90 compiler_flags: -heap-arrays -fp-model precise -assume 2underscores -c... tiling: 016x032 history: ROMS/TOMS, Version 3.4, Sunday - December 4, 2011 - 7... ana_file: /scratch/zhangxq/projects/txla_nesting6/Functionals/an... CPP_options: TXLA, ANA_BSFLUX, ANA_BTFLUX, ASSUMED_SHAPE, BULK_FLUX...
Built-in Physical Calculations#
These are all properties of the accessor, so should be called without (). Demonstrated below are the calculations using the accessor and not using the accessor.
Horizontal speed#
ds.xroms.speed # accessor
xroms.speed(ds.u, ds.v, xgrid) # function
ds.xroms.speed
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'speed' (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 14MB dask.array<sqrt, shape=(2, 30, 191, 300), dtype=float32, chunksize=(2, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Attributes: long_name: horizontal speed units: m/s time: ocean_time field: u-velocity, scalar, series name: speed
Kinetic energy#
ds.xroms.KE # accessor
# without the accessor you need to manage this yourself — first calculate speed to then calculate KE
speed = xroms.speed(ds.u, ds.v, xgrid)
xroms.KE(ds.rho0, speed)
ds.xroms.KE
<xarray.DataArray 'KE' (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<multiply, shape=(2, 30, 191, 300), dtype=float64, chunksize=(2, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Attributes: name: KE long_name: kinetic energy units: kg/(m*s^2)
Geostrophic velocities#
ds.xroms.ug # accessor, u component
ds.xroms.vg # accessor, v component
ug, vg = xroms.uv_geostrophic(ds.zeta, ds.f, xgrid) # function
ds.xroms.ug
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'ug' (ocean_time: 2, eta_rho: 191, xi_u: 299)> Size: 914kB dask.array<truediv, shape=(2, 191, 299), dtype=float64, chunksize=(2, 191, 299), chunktype=numpy.ndarray> Coordinates: * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... lon_u (eta_rho, xi_u) float64 457kB dask.array<chunksize=(191, 299), meta=np.ndarray> lat_u (eta_rho, xi_u) float64 457kB dask.array<chunksize=(191, 299), meta=np.ndarray> * xi_u (xi_u) int64 2kB 0 1 2 3 4 5 6 7 ... 292 293 294 295 296 297 298 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 Attributes: long_name: geostrophic u velocity units: m/s time: ocean_time field: free-surface, scalar, series name: ug
Eddy kinetic energy (EKE)#
ds.xroms.EKE # accessor
ug, vg = xroms.uv_geostrophic(ds.zeta, ds.f, xgrid)
xroms.EKE(ug, vg, xgrid)
ds.xroms.EKE
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'EKE' (ocean_time: 2, eta_rho: 191, xi_rho: 300)> Size: 917kB dask.array<mul, shape=(2, 191, 300), dtype=float64, chunksize=(2, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 Attributes: long_name: eddy kinetic energy units: m^2/s^2 time: ocean_time field: free-surface, scalar, series name: EKE
Vertical shear#
Since it is a common use case, there are specific methods to return the u and v components of vertical shear on their own grids. These are just available for Datasets.
ds.xroms.dudz
ds.xroms.dvdz
xroms.dudz(ds.u, xgrid)
xroms.dvdz(ds.v, xgrid)
# already on same grid:
ds.xroms.vertical_shear
dudz = xroms.dudz(ds.u, xgrid)
dvdz = xroms.dvdz(ds.v, xgrid)
xroms.vertical_shear(dudz, dvdz, xgrid)
ds.xroms.dudz
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'dudz' (ocean_time: 2, s_w: 31, eta_rho: 191, xi_u: 299)> Size: 28MB dask.array<truediv, shape=(2, 31, 191, 299), dtype=float64, chunksize=(2, 31, 191, 299), chunktype=numpy.ndarray> Coordinates: * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... lon_u (eta_rho, xi_u) float64 457kB dask.array<chunksize=(191, 299), meta=np.ndarray> lat_u (eta_rho, xi_u) float64 457kB dask.array<chunksize=(191, 299), meta=np.ndarray> * xi_u (xi_u) int64 2kB 0 1 2 3 4 5 6 7 ... 292 293 294 295 296 297 298 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_w_u (ocean_time, s_w, eta_rho, xi_u) float64 28MB dask.array<chunksize=(2, 31, 191, 299), meta=np.ndarray> Attributes: name: dudz long_name: u component of vertical shear units: 1/s
The magnitude of the vertical shear is also a built-in derived variable for the xroms
accessor:
ds.xroms.vertical_shear
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'shear' (ocean_time: 2, s_w: 31, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<sqrt, shape=(2, 31, 191, 300), dtype=float64, chunksize=(2, 31, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_w (ocean_time, s_w, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 31, 191, 300), meta=np.ndarray> Attributes: name: shear long_name: vertical shear units: 1/s
Vertical vorticity#
ds.xroms.vort
xroms.relative_vorticity(ds.u, ds.v, xgrid)
ds.xroms.vort
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'vort' (ocean_time: 2, s_w: 31, eta_v: 190, xi_u: 299)> Size: 28MB dask.array<sub, shape=(2, 31, 190, 299), dtype=float64, chunksize=(2, 31, 190, 299), chunktype=numpy.ndarray> Coordinates: * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_u (xi_u) int64 2kB 0 1 2 3 4 5 6 7 ... 292 293 294 295 296 297 298 * eta_v (eta_v) int64 2kB 0 1 2 3 4 5 6 ... 183 184 185 186 187 188 189 z_w_psi (ocean_time, s_w, eta_v, xi_u) float64 28MB dask.array<chunksize=(2, 31, 190, 299), meta=np.ndarray> Attributes: long_name: vertical component of vorticity units: 1/s time: ocean_time field: v-velocity, scalar, series name: vort
Horizontal convergence#
Horizontal component of the currents convergence.
ds.xroms.convergence
xroms.convergence(ds.u, ds.v, xgrid)
ds.xroms.convergence
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'convergence' (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<add, shape=(2, 30, 191, 300), dtype=float64, chunksize=(2, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Attributes: long_name: horizontal convergence units: 1/s time: ocean_time field: u-velocity, scalar, series name: convergence
Normalized surface convergence#
Horizontal component of the currents convergence at the surface, normalized by $f$. This is only available through the accessor.
ds.xroms.convergence_norm
ds.xroms.convergence_norm
<xarray.DataArray 'convergence_norm' (ocean_time: 2, eta_rho: 191, xi_rho: 300)> Size: 917kB dask.array<truediv, shape=(2, 191, 300), dtype=float64, chunksize=(2, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 Attributes: name: convergence_norm long_name: normalized surface horizontal convergence units:
Ertel potential vorticity#
The accessor assumes you want the Ertel potential vorticity of the buoyancy:
ds.xroms.ertel
sig0 = xroms.potential_density(ds.temp, ds.salt)
buoyancy = xroms.buoyancy(sig0, rho0=ds.rho0)
xroms.ertel(buoyancy, ds.u, ds.v, ds.f, xgrid, scoord='s_w')
Alternatively, the user can access the original function and use a different tracer for this calculation (in this example, “dye_01”), and can return the result on a different vertical grid, for example:
xroms.ertel(ds.dye_01, ds.u, ds.v, ds.f, xgrid, scoord='s_w')
ds.xroms.ertel
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'ertel' (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<add, shape=(2, 30, 191, 300), dtype=float64, chunksize=(2, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Attributes: name: ertel long_name: ertel potential vorticity units: tracer/(m*s)
Density#
ds.xroms.rho
xroms.density(ds.temp, ds.salt)
ds.xroms.rho
<xarray.DataArray 'rho' (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<truediv, shape=(2, 30, 191, 300), dtype=float64, chunksize=(2, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Attributes: long_name: density units: kg/m^3 time: ocean_time field: temperature, scalar, series name: rho
Potential density#
ds.xroms.sig0
xroms.potential_density(ds.temp, ds.salt)
ds.xroms.sig0
<xarray.DataArray 'sig0' (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 14MB dask.array<truediv, shape=(2, 30, 191, 300), dtype=float32, chunksize=(2, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Attributes: long_name: potential density units: kg/m^3 time: ocean_time field: temperature, scalar, series name: sig0
Buoyancy#
ds.xroms.buoyancy
sig0 = xroms.potential_density(ds.temp, ds.salt);
xroms.buoyancy(sig0)
ds.xroms.buoyancy
<xarray.DataArray 'buoyancy' (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<truediv, shape=(2, 30, 191, 300), dtype=float64, chunksize=(2, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_rho (ocean_time, s_rho, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 30, 191, 300), meta=np.ndarray> Attributes: long_name: buoyancy units: m/s^2 time: ocean_time field: temperature, scalar, series name: buoyancy
Buoyancy frequency#
Also called vertical buoyancy gradient.
ds.xroms.N2
rho = xroms.density(ds.temp, ds.salt) # calculate rho if not in output
xroms.N2(rho, xgrid)
ds.xroms.N2
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'N2' (ocean_time: 2, s_w: 31, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<truediv, shape=(2, 31, 191, 300), dtype=float64, chunksize=(2, 31, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_w (ocean_time, s_w, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 31, 191, 300), meta=np.ndarray> Attributes: long_name: buoyancy frequency squared, or vertical buoyancy gradient units: 1/s^2 time: ocean_time field: temperature, scalar, series name: N2
Horizontal buoyancy gradient#
ds.xroms.M2
rho = xroms.density(ds.temp, ds.salt) # calculate rho if not in output
xroms.M2(rho, xgrid)
ds.xroms.M2
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid_ufunc.py:832: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
out_dim: grid._ds.dims[out_dim] for arg in out_core_dims for out_dim in arg
<xarray.DataArray 'M2' (ocean_time: 2, s_w: 31, eta_rho: 191, xi_rho: 300)> Size: 28MB dask.array<truediv, shape=(2, 31, 191, 300), dtype=float64, chunksize=(2, 31, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_w (s_w) float64 248B -1.0 -0.9667 -0.9333 ... -0.03333 0.0 * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 z_w (ocean_time, s_w, eta_rho, xi_rho) float64 28MB dask.array<chunksize=(2, 31, 191, 300), meta=np.ndarray> Attributes: long_name: horizontal buoyancy gradient units: 1/s^2 time: ocean_time field: temperature, scalar, series name: M2
Mixed layer depth#
This is not a property since the threshold is a parameter and needs to be input.
ds.xroms.mld(thresh=0.03)
sig0 = xroms.potential_density(ds.temp, ds.salt);
xroms.mld(sig0, xgrid, ds.h, ds.mask_rho, thresh=0.03)
ds.xroms.mld(thresh=0.03)
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid.py:989: FutureWarning: From version 0.8.0 the Axis computation methods will be removed, in favour of using the Grid computation methods instead. i.e. use `Grid.transform` instead of `Axis.transform`
warnings.warn(
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xgcm/grid.py:989: FutureWarning: From version 0.8.0 the Axis computation methods will be removed, in favour of using the Grid computation methods instead. i.e. use `Grid.transform` instead of `Axis.transform`
warnings.warn(
<xarray.DataArray 'mld' (ocean_time: 2, eta_rho: 191, xi_rho: 300)> Size: 917kB dask.array<abs, shape=(2, 191, 300), dtype=float64, chunksize=(2, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * ocean_time (ocean_time) datetime64[ns] 16B 2009-11-19T12:00:00 2009-11-1... * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 sig0 float64 8B 0.0 z_rho (ocean_time, eta_rho, xi_rho) float64 917kB dask.array<chunksize=(2, 191, 300), meta=np.ndarray> Attributes: long_name: mixed layer depth time: ocean_time field: z_rho, scalar, series units: m positive: up standard_name: depth name: mld
Other calculations#
Rotations#
If your ROMS grid is curvilinear, you’ll need to rotate your u and v velocities from along the grid axes to being eastward and northward. You can do this with
ds.xroms.east
ds.xroms.north
Additionally, if you want to rotate your velocity to be a different orientation, for example to be along-channel, you can do that with
ds.xroms.east_rotated(angle)
ds.xroms.north_rotated(angle)
Time-based calculations including climatologies#

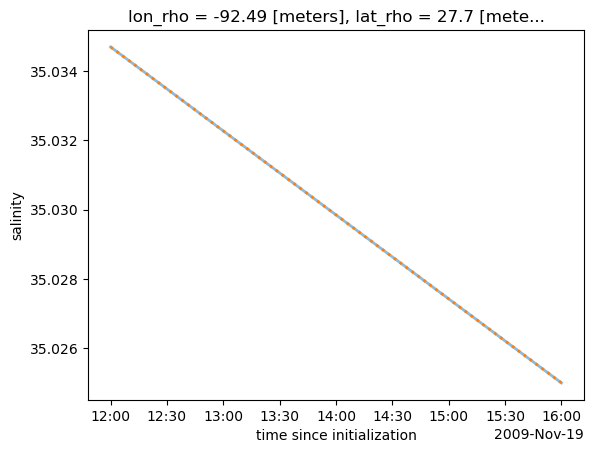

Rolling averages in time#
Here is an example of computing a rolling average in time. Nothing happens in this example because we only have two time steps to use, however, it does demonstrate the syntax. If more time steps were available we would update ds.salt.rolling(ocean_time=1)
to include more time steps to average over in a rolling sense.
More information about rolling operations is available.
roll = ds.salt.rolling(ocean_time=1, center=True, min_periods=1).mean()
roll.isel(s_rho=-1, eta_rho=10, xi_rho=20).plot(alpha=0.5, lw=2)
ds.salt.isel(s_rho=-1, eta_rho=10, xi_rho=20).plot(ls=":", lw=2)
[<matplotlib.lines.Line2D at 0x7f93b8594d00>]
Resampling in time#
Can’t have any chunks in the time dimension to do this. More info: http://xarray.pydata.org/en/stable/generated/xarray.Dataset.resample.html

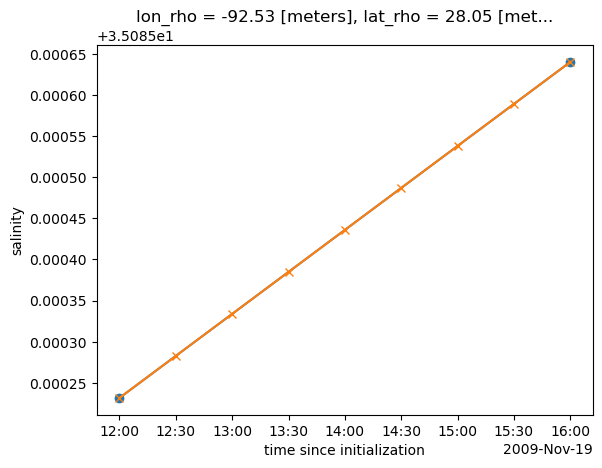

Upsample#
Upsample to a higher resolution in time. Makes sense to interpolate to fill in data when upsampling, but can also forward or backfill, or just add nan’s.
dstest = ds.resample(ocean_time='30min', restore_coord_dims=True).interpolate()
Plot to visually inspect results
ds.salt.cf.isel(Y=30, X=20, Z=-1).plot(marker='o')
dstest.salt.cf.isel(Y=30, X=20, Z=-1).plot(marker='x')
[<matplotlib.lines.Line2D at 0x7f93b82d6290>]
Downsample#
Resample down to lower resolution in time. This requires appending a method to aggregate the extra data, such as a mean
. Note that other options can be used to shift the result within the interval of aggregation in various ways. Just the syntax is shown here since we only have two time steps to work with.
dstest = ds.resample(ocean_time='6H').mean()
ds.salt.cf.isel(Y=30, X=20, Z=-1).plot(marker='o')
dstest.salt.cf.isel(Y=30, X=20, Z=-1).plot(marker='x')
Seasonal average, over time#
This is an example of resampling.
da.cf.resample({'T': [time frequency string]}).reduce([aggregation function])
For example, calculate the mean temperature every quarter in time with the following:
ds.temp.cf.resample({'T': 'QS'}).reduce(np.mean)
or the aggregation function can be appended on the end directly with:
ds.temp.cf.resample({'T': 'QS'}).mean()
The result of this calculation is a time series of downsampled chunks of output in time, the frequency of which is selected by input “time frequency string”, and aggregated by input “aggregation function”.
Examples of the time frequency string are:
“QS”: quarters, starting in January of each year and averaging three months.
Also available are selections like “QS-DEC”, quarters but starting with December to better align with seasons. Other months are input options as well.
“MS”: monthly
“D”: daily
“H”: hourly
Many more options are given here.
Examples of aggregation functions are:
np.mean
np.max
np.min
np.sum
np.std
Result of downsampling a 4D salt array from hourly to 6-hourly, for example, gives: [ocean_time x s_rho x eta_rho x xi_rho]
, where ocean_time
has about 1/6 of the number of entries reflecting the aggregation in time.
ds.temp.cf.resample(indexer={'T': '6H'}).reduce(np.mean)
/home/docs/checkouts/readthedocs.org/user_builds/xroms/conda/latest/lib/python3.10/site-packages/xarray/core/groupby.py:532: FutureWarning: 'H' is deprecated and will be removed in a future version, please use 'h' instead.
index_grouper = pd.Grouper(
<xarray.DataArray 'temp' (ocean_time: 1, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 7MB dask.array<stack, shape=(1, 30, 191, 300), dtype=float32, chunksize=(1, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 ... 185 186 187 188 189 190 * ocean_time (ocean_time) datetime64[ns] 8B 2009-11-19T12:00:00 Attributes: long_name: potential temperature units: Celsius time: ocean_time field: temperature, scalar, series
Seasonal mean over all available time#
This is how to average over the full dataset period by certain time groupings using xarray groupby
which is like pandas version. In this case we show the seasonal mean averaged across the full model time period. The syntax for this is:
da.salt.cf.groupby('T.[time string]').reduce([aggregation function])
For example, to average salt by season:
da.salt.cf.groupby('T.season').reduce(np.mean)
or
da.salt.cf.groupby('T.season').mean()
Options for the time string include:
‘season’
‘year’
‘month’
‘day’
‘hour’
‘minute’
‘second’
‘dayofyear’
‘week’
‘dayofweek’
‘weekday’
‘quarter’
More information about options for time (including “derived” datetime coordinates) is here.
Examples of aggregation functions are:
np.mean
np.max
np.min
np.sum
np.std
Result of averaging over seasons for a 4D salt array returns, for example: [season x s_rho x eta_rho x xi_rho]
, where season
has 4 entries, each covering 3 months of the year.
# this example has only 1 season because it is a short example file
ds.temp.cf.groupby('T.season').mean()
<xarray.DataArray 'temp' (season: 1, s_rho: 30, eta_rho: 191, xi_rho: 300)> Size: 7MB dask.array<stack, shape=(1, 30, 191, 300), dtype=float32, chunksize=(1, 30, 191, 300), chunktype=numpy.ndarray> Coordinates: lon_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> lat_rho (eta_rho, xi_rho) float64 458kB dask.array<chunksize=(191, 300), meta=np.ndarray> * s_rho (s_rho) float64 240B -0.9833 -0.95 -0.9167 ... -0.05 -0.01667 * xi_rho (xi_rho) int64 2kB 0 1 2 3 4 5 6 7 ... 293 294 295 296 297 298 299 * eta_rho (eta_rho) int64 2kB 0 1 2 3 4 5 6 7 ... 184 185 186 187 188 189 190 * season (season) object 8B 'SON' Attributes: long_name: potential temperature units: Celsius time: ocean_time field: temperature, scalar, series
